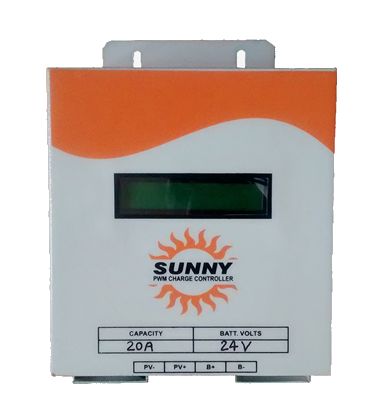

IOT Based Solar Charge Controller

Presenting State of The Art IOT based Solar Charge Controller. Ideally suited for remote Battery operated installations. Using modern technology this charge controller is 100% user programmable for battery charging, remote data monitoring and connectivity parameters. Built-in LCD Display shows all the necessary parameters related to electrical data and performance. Unique energy management algorithm ensures minimum idle current and longer battery back-up and life. Remote monitoring ensures complete management control over operation, maintenance and quality of service.

EVERON iESPCC-2024

More Detailed Information

Salient Features:
  • Available in PWM and MPPT Configurations.
  • Single Board Design with Built-in IOT Controller.
  • Wireless connectivity for IOT Configurations (SSID & Password)
  • All Battery Charging Parameters – User Programmable
  • Wireless interaction between Controller and User
  • 16 x 2, Alphanumeric LCD Display
  • Site/ performance parameters directly uploaded on remote web server.
  • IP55 Outdoor duty, Light weight and Corrosion free enclosure
  • Option of Built-in Li-Ion Batteries
  • Very Low Idle Current, Excellent Battery utilization
  • Ideally suitable for Solar Home Lighting, Solar Street Lighting, rural infra projects.
  • Available in 12 V and higher voltage ratings.
  • Suitable for any battery chemistry, Lead Acid, Tubular, Li-Ion, Li-Fe-PO4, Ni-Cd.
Specifications:
Charger Topology
PWM
Voltage Rating
12 V, 24 V
Current Rating
10 A, 20 A, 30 A
LCD Display
16 x 2 Alphanumeric
Enclosure
ABS Enclosure, IP55
Programmable Battery Parameters
Boost Voltage, Absorption Voltage, Float Voltage, Low Battery Cutoff, Temp. Coefficient.
Data Parameters
Frequency of Updating, Real Time Clock(optional), Data Download(Optional)
Network Parameters
SSID, Password
Operating Temperature Range
0 – 55 deg C
Idle current
Less Than 6 mA
Display Parameters
PV Voltage, PV Current, Battery Voltage, Battery Current, Output Voltage, Temperature etc.
Dimensions
250 x 160 x 130 mm(LXWXD)
