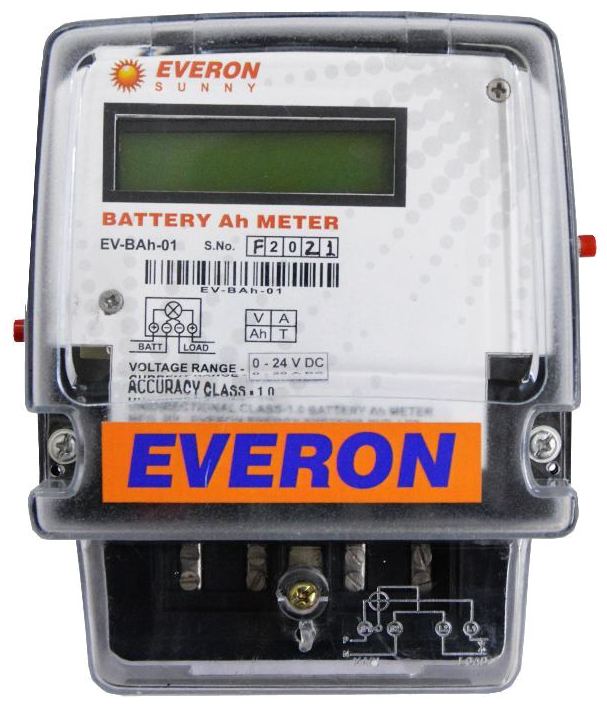

EVERON Battery Ah Meter
EV-BAH-2020
Battery Ah Meter is a State of the Art, Multi–purpose meter meant for AH
measurement of Lithium Cells and Lithium Packs. A Micro-Controller based design
now comes with 0.01 V and 0.01A sensitivity. A special arrangement is made to test
the NMC and LFP cells alone without BMS circuit. Low Voltage Cut off levels are
selectable through a selector switch and the pre-set Battery Low cut off voltage is
displayed on the LCD Display.
User can set the desired discharge current and leave the battery for discharge at the
set rate of discharge. An internal low battery cut-off circuit trips the load circuit along
with a loud audio beep. When battery reaches low voltage level. The recorded Ah is
stored in the display. Ah measurement is accurate to 0.01 AH.
The equipment is powered by a 12.0 V adapter and does not use battery energy for

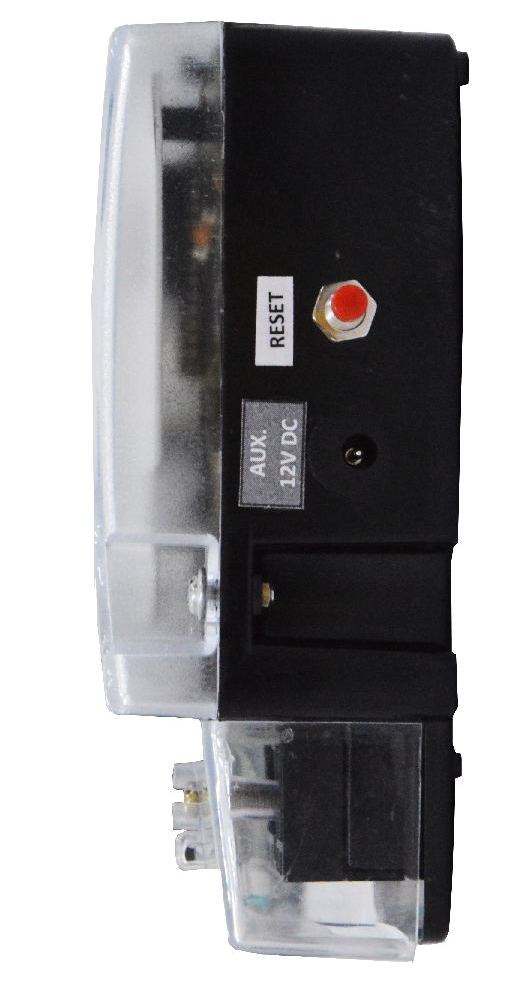

powering itself. Additional features include Battery type selection switch and a Reset
Switch.
Ah count can be set to zero by pressing the reset button before switching on. Ah
count is cumulative and previous Ah value is also recorded as Last Ah Count. The
equipment has a 16 x 2 Line LCD Display for showing various readings and measurements.
EV-BAH-2020 Specifications:
