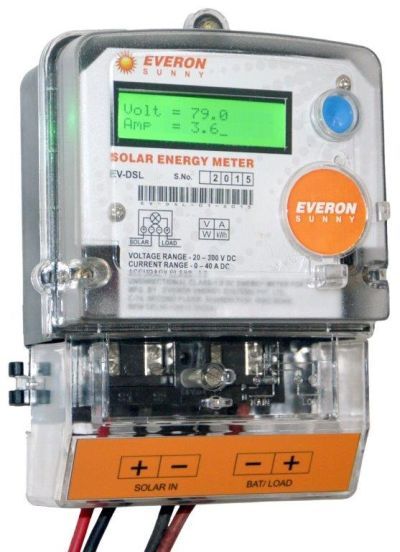

EVERON Solar Energy Meter with Data Logger
EV-DSL-02
Everon DC Energy Meter EV-DSL-02 is an intelligent DC Energy Meter, suiting requirements of variety of Solar Energy applications. EV-DSL-02 is a single channel, micro-controller based system for accurate measurements of DC Voltage, DC Current, Load KW and cumulative KWH count. KWH measurements are indicated in three separate registers.
Salient Features:
- KWH measurement resolution is 0.001 KWH
- KWH measured and logged as Previous Count (PC), Current Count (CC) and Total Count (TC)
- Analyze Solar Plant Generation with complete clarity
- Precise Current and Voltage Measurement
- Built-in Real Time Clock and Memory. Data Download through simple commands on Serial Port
Specifications:
Voltage Measurement
30 V To 70 V Dc* 20 V To 300 V** (0-900 V Battery Operated)
Current Mesurement
0 – 40 A (Range Expansion up to 1000 A with Hall Sensor)
Display Features
Two Line Alphanumeric Display
Display Parameters
Voltage Current Kilowatt KWH (TC), (PC) or (CC)
Memory Features
Voltage, Current, Wattage And Kwh Values With Real Time
Memory Retention Limit
5 Years Upto 3000 Values.
Measurement Accuracy
+/- 1% Of FSD + +/- 1 Digit
Operating Temperature
0 Deg C To 50 Deg C
Real Time Clock
User Programmable / Settable
Programmable Features
Real Time, Updation Frequency, Instand Data / Logged Data
Terminations
Terminal Blocks For Input And Output Termination
Serial Port
Rs232 Port For Programming And Data Download.
Data Download
Recall All Stored Data Along With Time Stamp Or Instantaneous Data Display
Power Supply
Powered By Internal Lithium Ion Battery
Battery Charging
Adapter For Charging Supplied As A Standard Accessory
Interface With PC
USB Cable Supplied As A Standard Accessory
Dimensions
130 Mm X 208 Mm
** Windows Driver software and Communication Software downloadable from here
