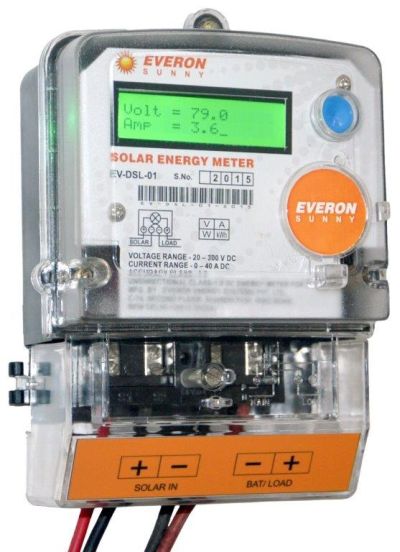

EVERON Low Cost Solar Energy Meter

EV-DSL-01D
  • Everon Solar DC Energy Meter is low cost DC Energy Meter, suiting variety of Solar Energy applications. It gives accurate measurement of Solar PV Voltage, Current and Dual Count of Cumulative KWH Count.
  • Cumulative KWH (Unit Generation Count) is displayed in two separate Registers, i.e. Previous Count and Current Count.
  • Previous Count (PC) is the Totalized KWH Count till the previous day Sunset and Current Count (CC) is the totalized KWH count for the running day.
  • At the time of sunrise of the next day, Current Day count is added in the previous day Count (PC) and Current day counter (CC) starts from zero.
  • EVERON Solar Energy Meter is available in three variants as per the given specifications.


EV-DSL-01D Specifications:
Input Voltage Range
8V – 60 V DC (EV-DSL-01LD)
20 V - 300 V DC (EV-DSL-01D)
20 V – 400 V DC (EV-DSL-01ED)
Input Dc Current Range
0-40 A DC
Display Features
Two Line Alphanumeric Display
Display Parameters
Voltage, Current, KWH Previous Day & KWH Present Day
Least Count For KWH
0.001 KWH
Measurement Accuracy
+/-1.0% of Range +/-1 Digit
Memory Reset Function
Reset KWH Count (Optional)
Memory Features
Internal Memory For KWH Count Storage
Memory Retention Limit
5 Years
Operating Temperature
0 Deg C To 50 Deg C
Dimensions
130 mm x 208 mm With Wall Mounting Bracket
Terminations and Options
Provision For External Shunts For Ratings Above 40 A
Operating Power Requirement
Powered By Source Voltage (PV)
Consumption < 0.5Watt
